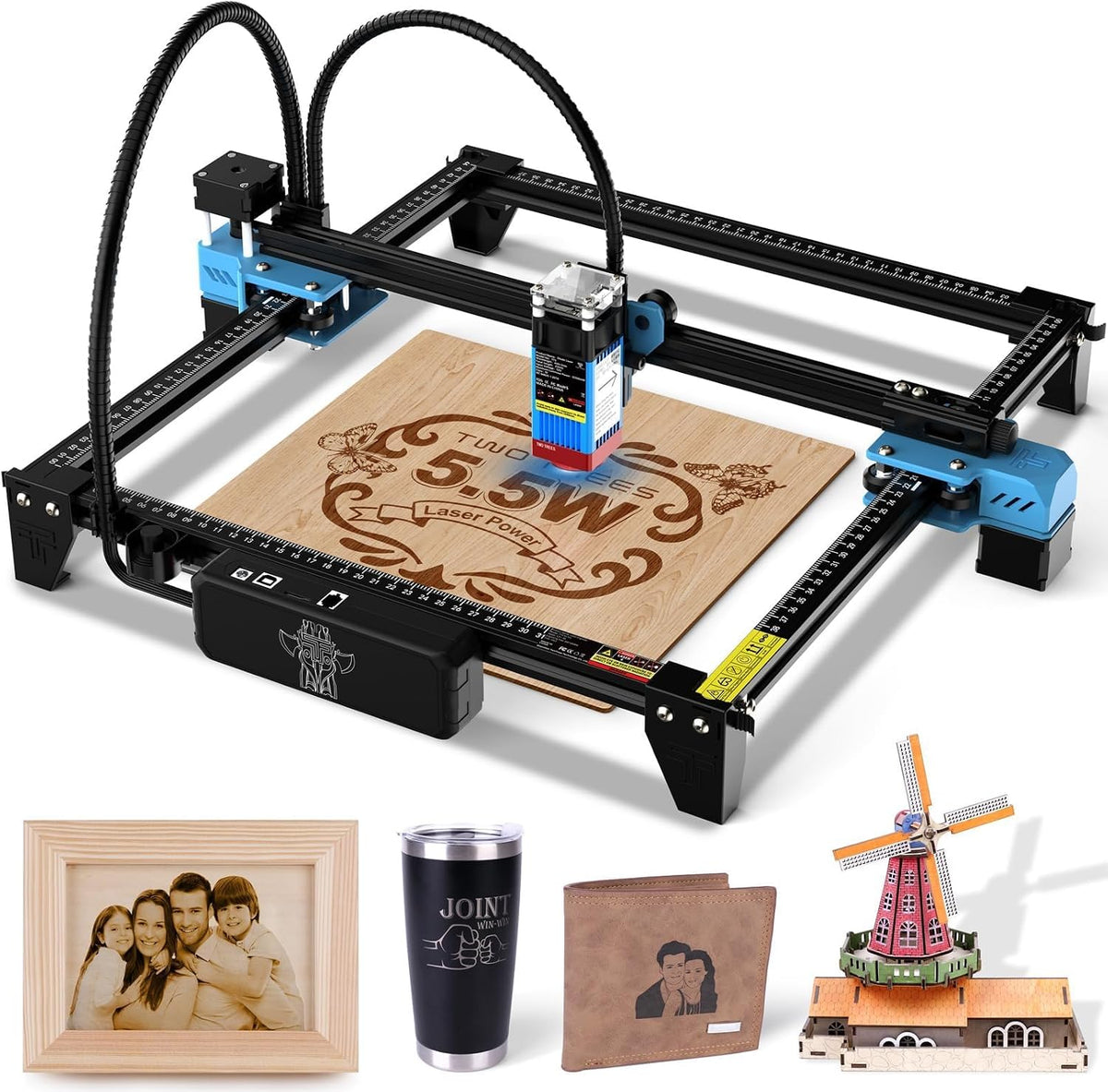

TTS-55 Pro Laser Engraver 5500Mw Laser Cutting Machine

TTS-55 Pro Laser Engraver 5500Mw Laser Cutting Machine is designed for precision engraving and cutting across materials including wood, leather, acrylic, paper, and stainless steel. Featuring a 5500 mW (5.5W) Class II laser, 0.08 x 0.46 mm fine spot focus, LD+FAC+C-Lens compression technology, and up to 0.1 mm engraving accuracy, it combines detailed processing with engraving speeds up to 30,000 mm/min. The 300 x 300 mm working area, 32-bit control system, Wi-Fi connectivity, online operation, and TF card offline engraving provide flexible control for hobby, maker, and small business projects.

Specifications

• Item Model Number: TTS-55 pro

• Laser Power: 5500 mW (5.5W)

• Laser Class: Class II

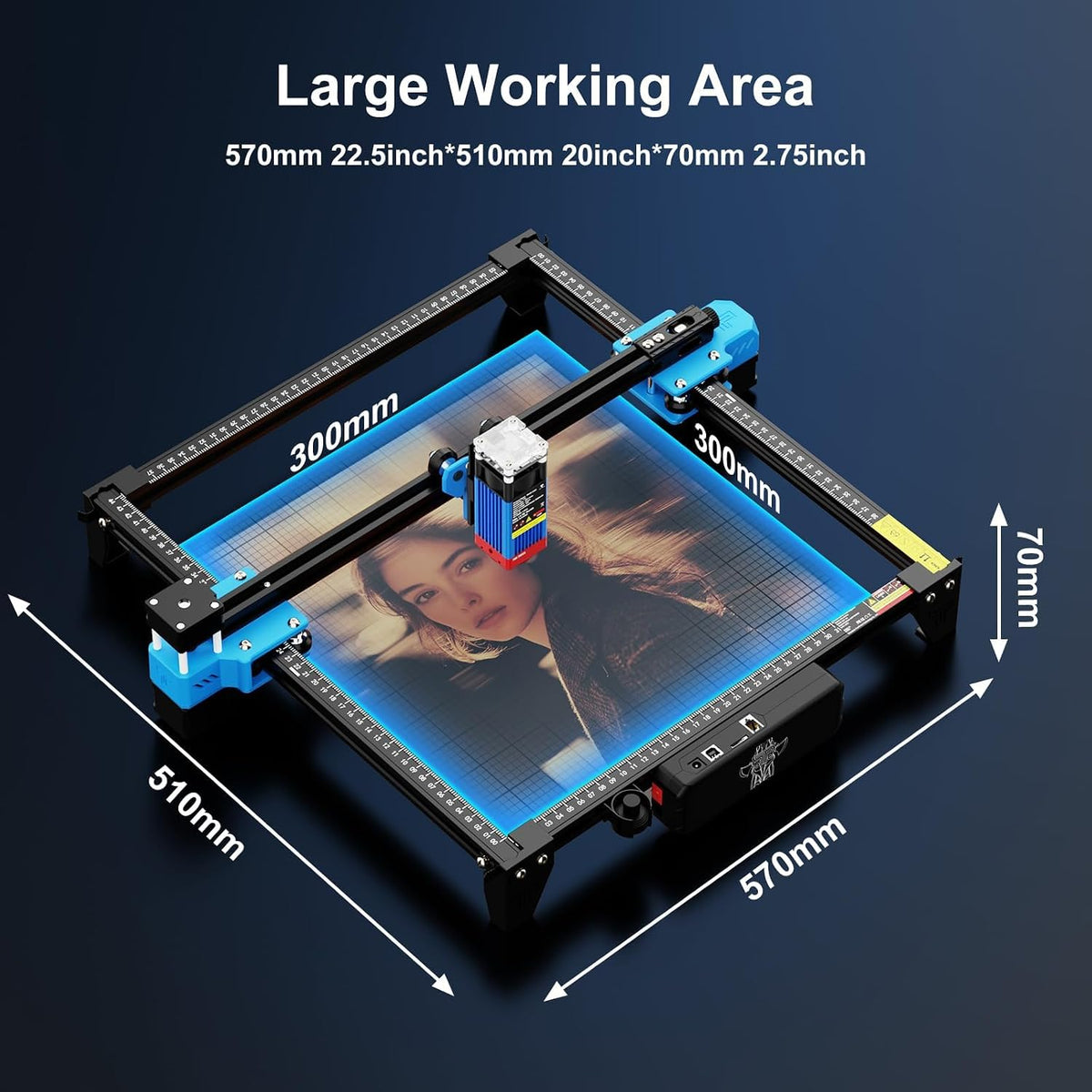

• Working Area: 300 x 300 mm

• Spot Focus: 0.08 x 0.46 mm

• Engraving Accuracy: Up to 0.1 mm

• Focal Length: 23 mm

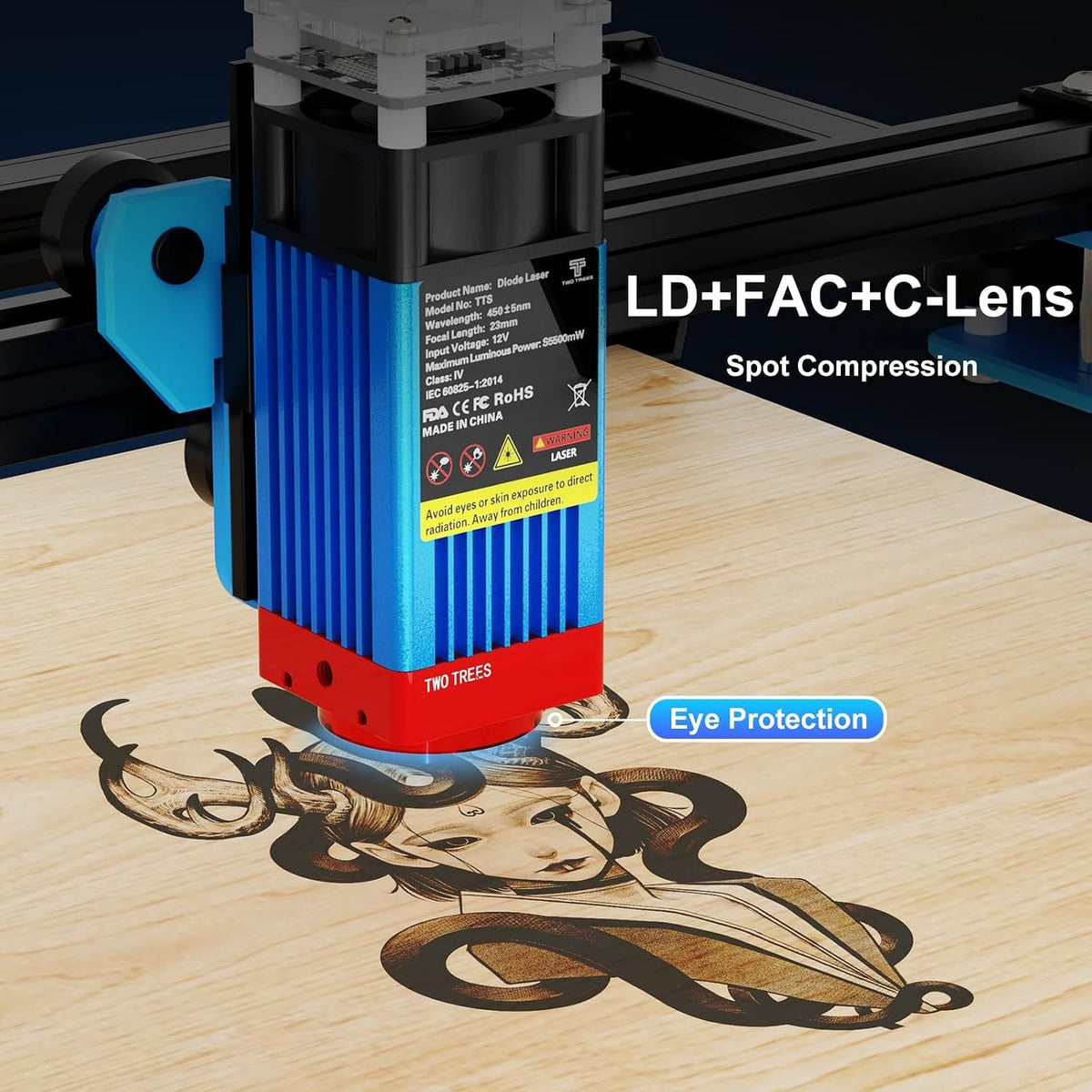

• Laser Technology: LD+FAC+C-Lens compression technology

• Maximum Engraving Speed: Up to 30,000 mm/min

• Control Board: Dual-core 32-bit MCU

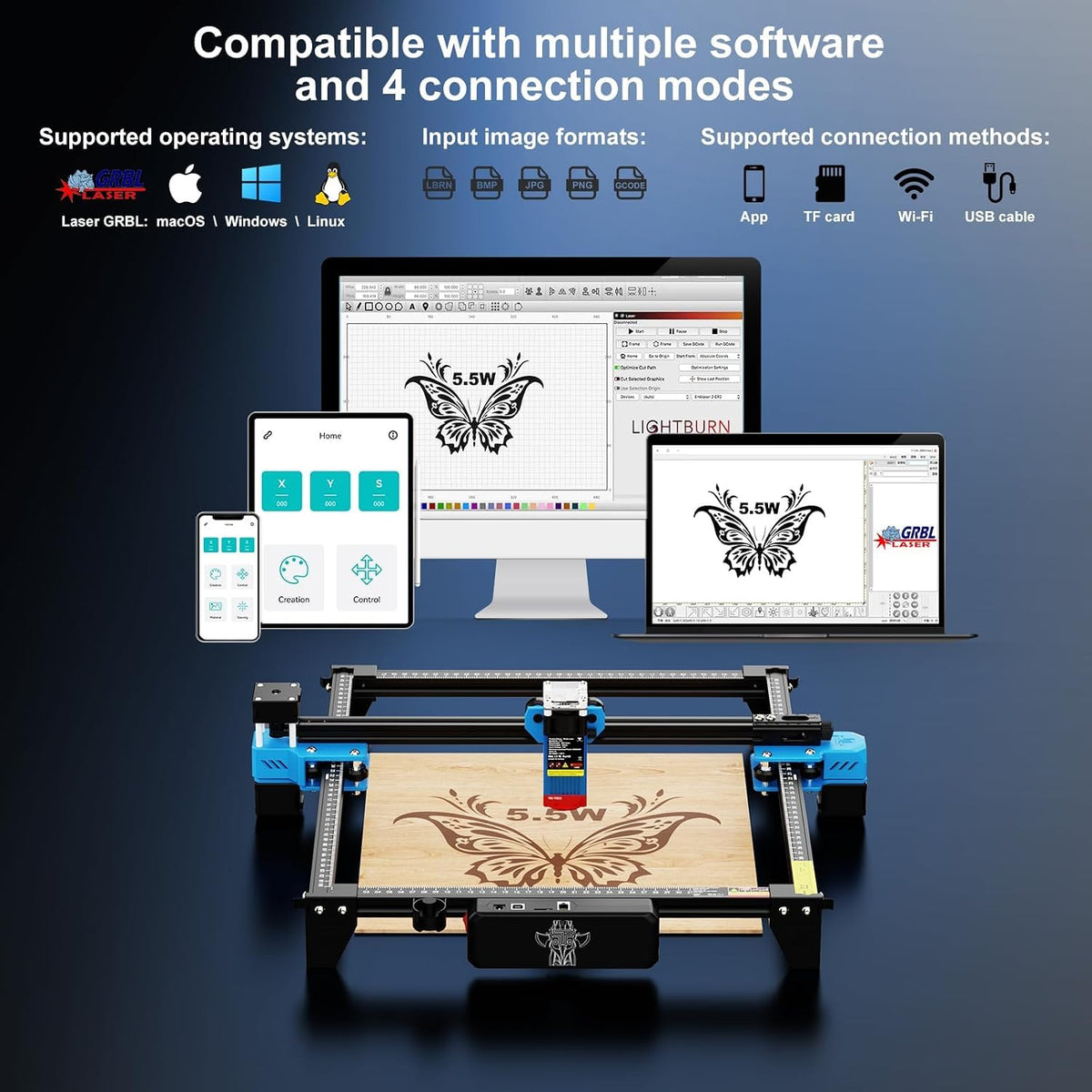

• Control Methods: Online engraving, TF card offline engraving, Wi-Fi mobile app control, and computer web control

• Compatible Software: LaserGRBL and LightBurn

• LaserGRBL Compatibility: Windows XP/7/8/10

• LightBurn Compatibility: Windows, macOS, and Linux

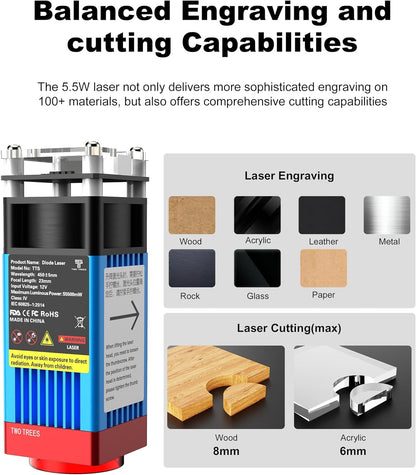

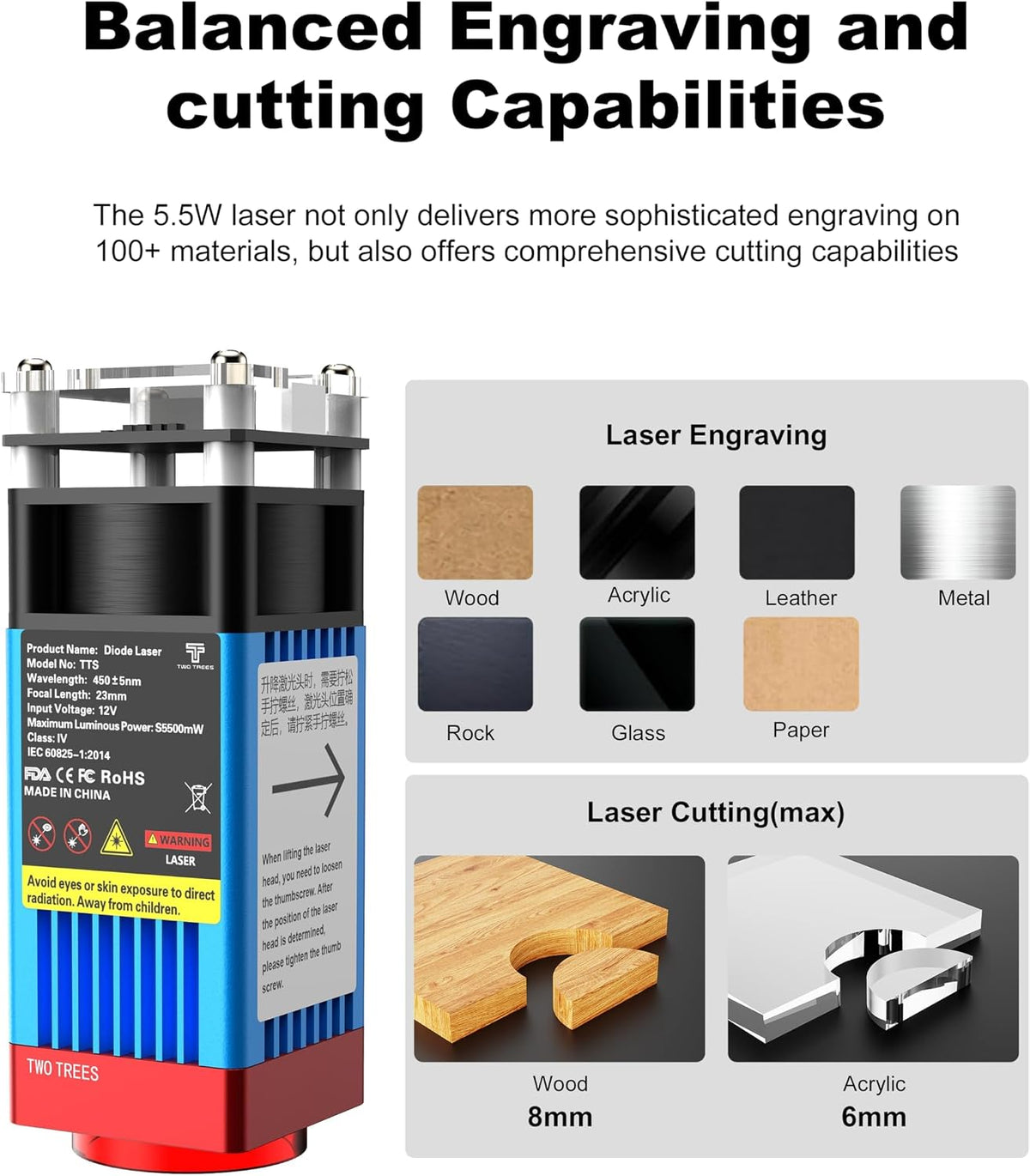

• Supported Materials: Wood, leather, acrylic, paper, stainless steel, and more

• Plywood Cutting Capacity: Up to 5 mm

• Acrylic Cutting Capacity: Up to 3 mm

• Leather Cutting Capacity: Up to 0.7 mm

• Product Dimensions: 19.4 x 6.49 x 6.29 inches

• Item Weight: 8.23 pounds

Features

• 5.5W Laser: The 5500 mW laser is designed for engraving and cutting applications across a variety of compatible materials.

• Air Assist Support: Includes a metal air-assisted nozzle designed to simplify integration with an air assist system for cleaner and deeper cuts.

• Red Laser Shield: A red laser shield is included as part of the upgraded laser assembly.

• Fine Spot Focus: The 0.08 x 0.46 mm spot focus supports detailed engraving and precision cutting.

• Compression Laser Technology: LD+FAC+C-Lens compression technology and a short 23 mm focal length are designed to provide focused cutting performance and detailed engraving.

• High-Speed Processing: The dual-core 32-bit MCU supports engraving speeds up to 30,000 mm/min.

• Online & Offline Engraving: Supports both online operation and TF card offline engraving for flexible project workflows.

• Wi-Fi Connectivity: Built-in Wi-Fi enables compatible mobile app and computer web control.

• Multi-Material Capability: Designed for engraving and cutting materials including wood, leather, acrylic, paper, and stainless steel.

• Software Compatibility: Supports LaserGRBL on Windows XP/7/8/10 and LightBurn on Windows, macOS, and Linux.

Installation

• Setup: Includes the tools needed for installation.

• Instructions: Detailed guides for installation and use are included.
