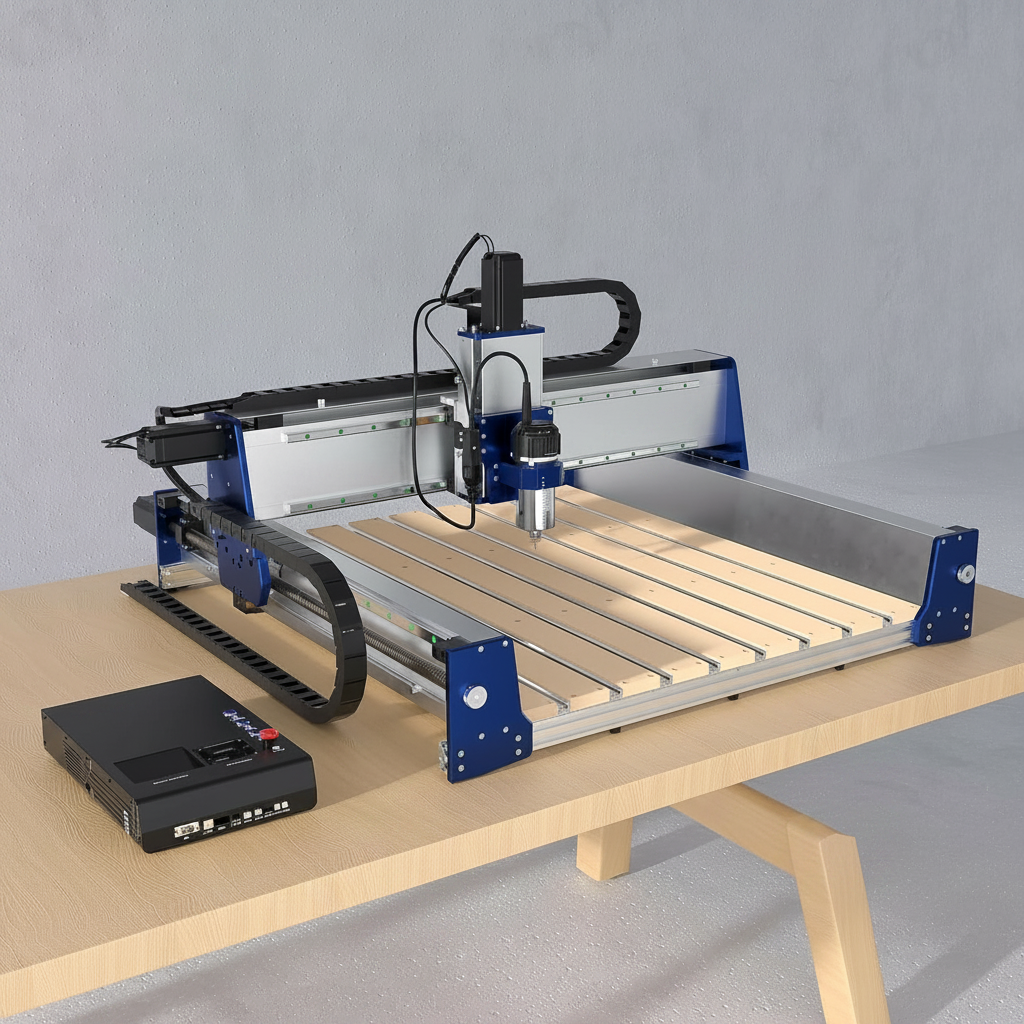

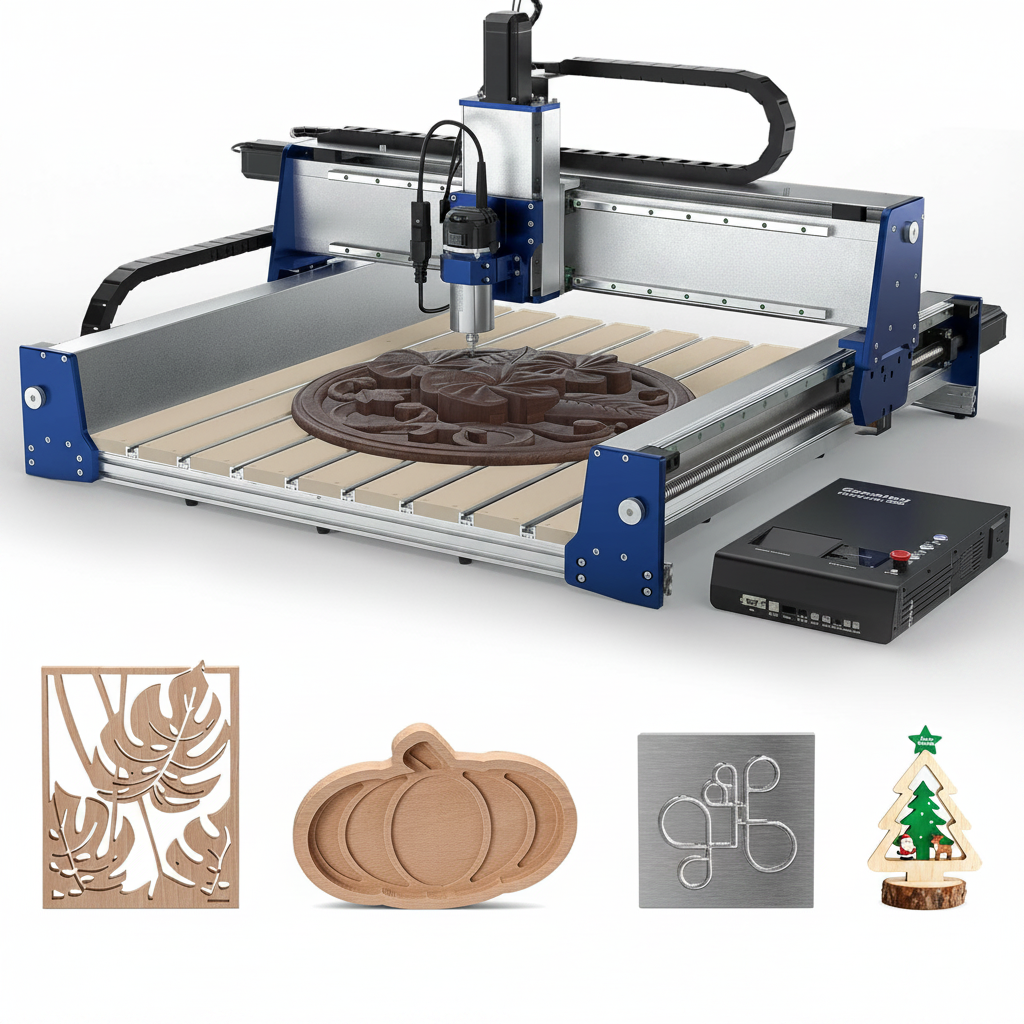

Proverxl 2X2 CNC Router Machine, Big CNC Machine

Proverxl 2X2 CNC Router Machine, Big CNC Machine is a modular CNC system designed for woodworking, metalworking, signage, furniture projects, cabinetry, gift production, and other professional-scale applications. Its pre-assembled major components help reduce setup time, while the 679 × 679 × 113 mm (26.76" × 26.76" × 4.44") work area supports larger projects and oversized material handling. The machine combines a 710W AC spindle, closed-loop NEMA 23 stepper motors, ball screws, linear guides, Wi-Fi connectivity, and support for a range of plug-and-play accessories.

Specifications

• Work Area: 2.23’ x 2.23’ x 0.37’ (679 x 679 x 113mm)

• Working Envelope: 679 × 679 × 113 mm (26.76" × 26.76" × 4.44")

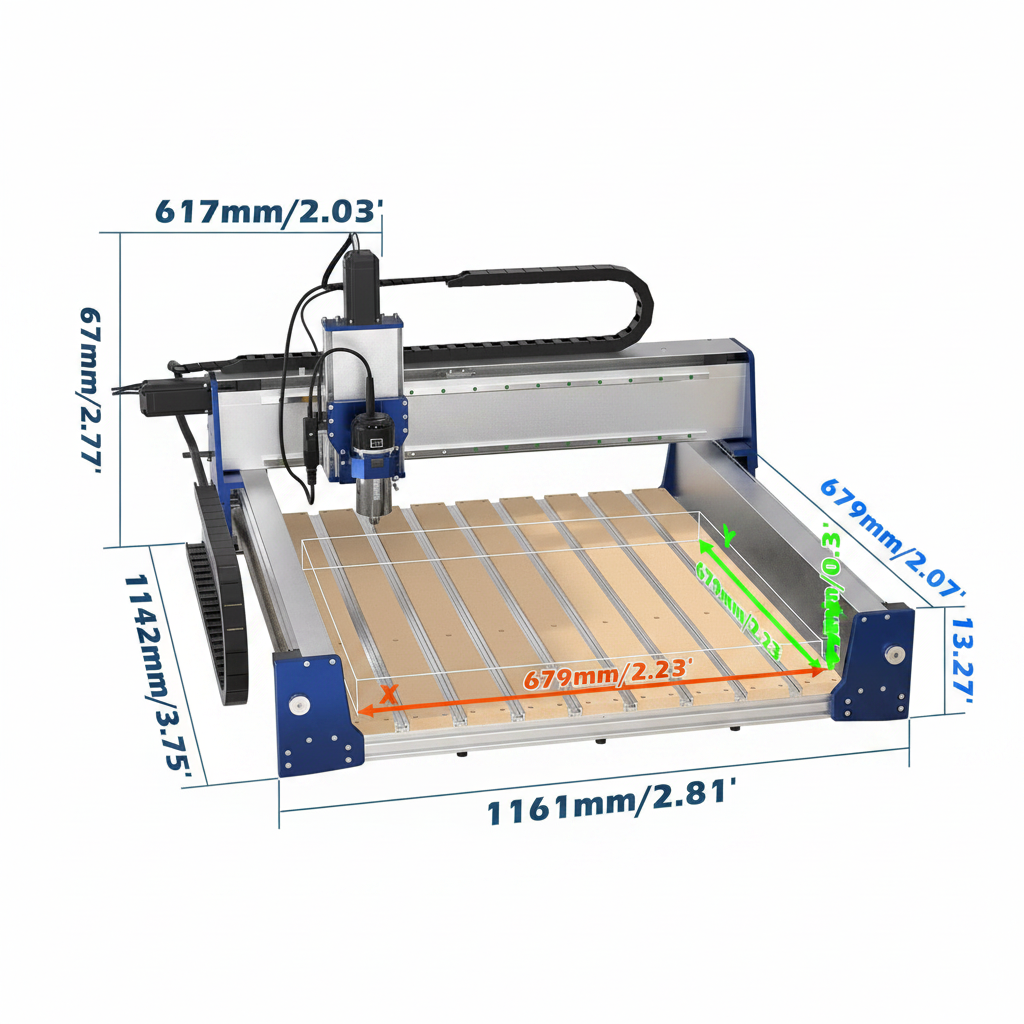

• Overall Dimension: 3.81’ x 3.75’ x 2.02’ (1161 x 1142 x 617mm)

• Control Board Compatibility: Grbl 1.1h

• MCU: 32-Bit

• Maximum Speed: 5000mm/min

• Maximum Rotational Speed: 30000 rpm

• Control Software: Software Based on GRBL Firmware (e.g., Candle, UGS)

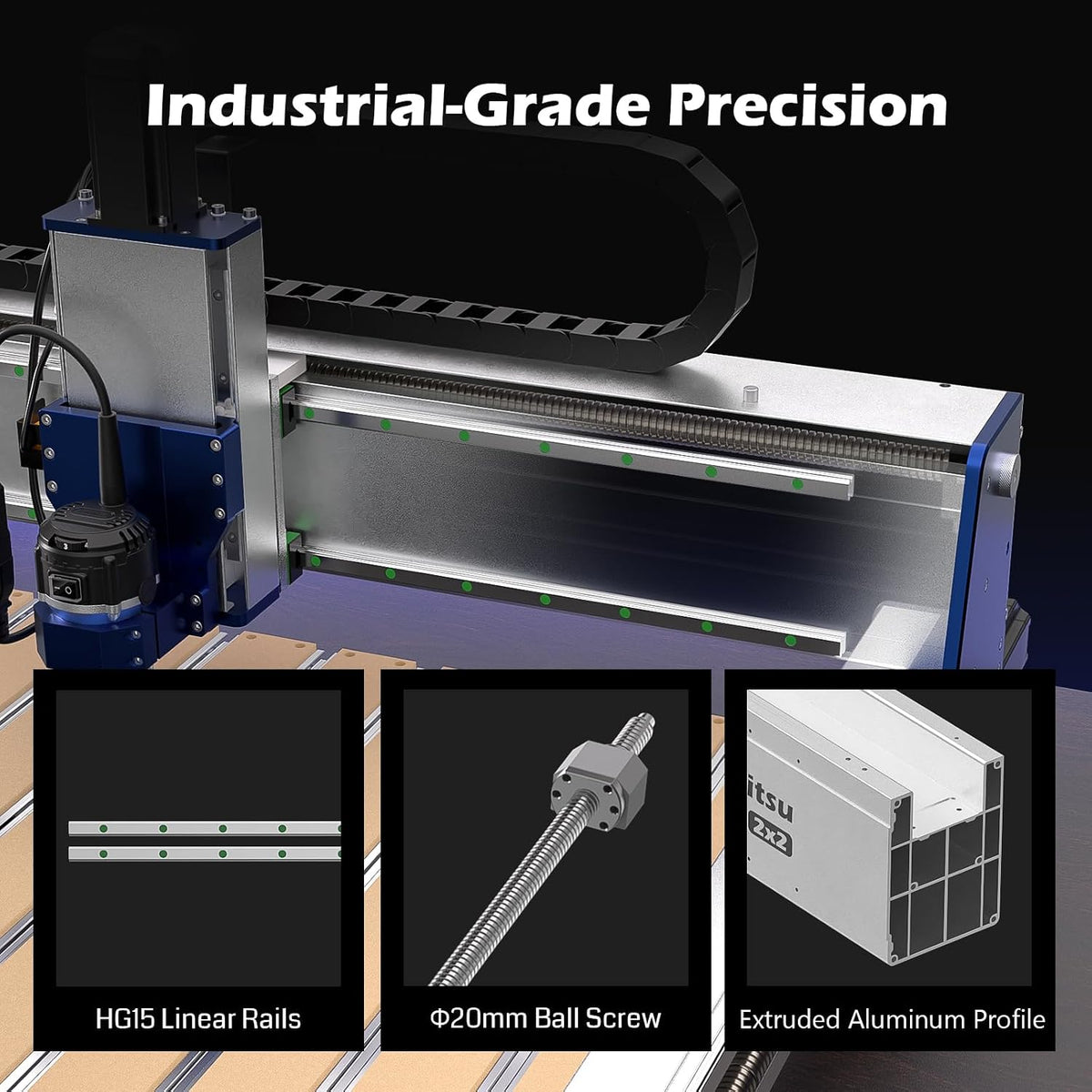

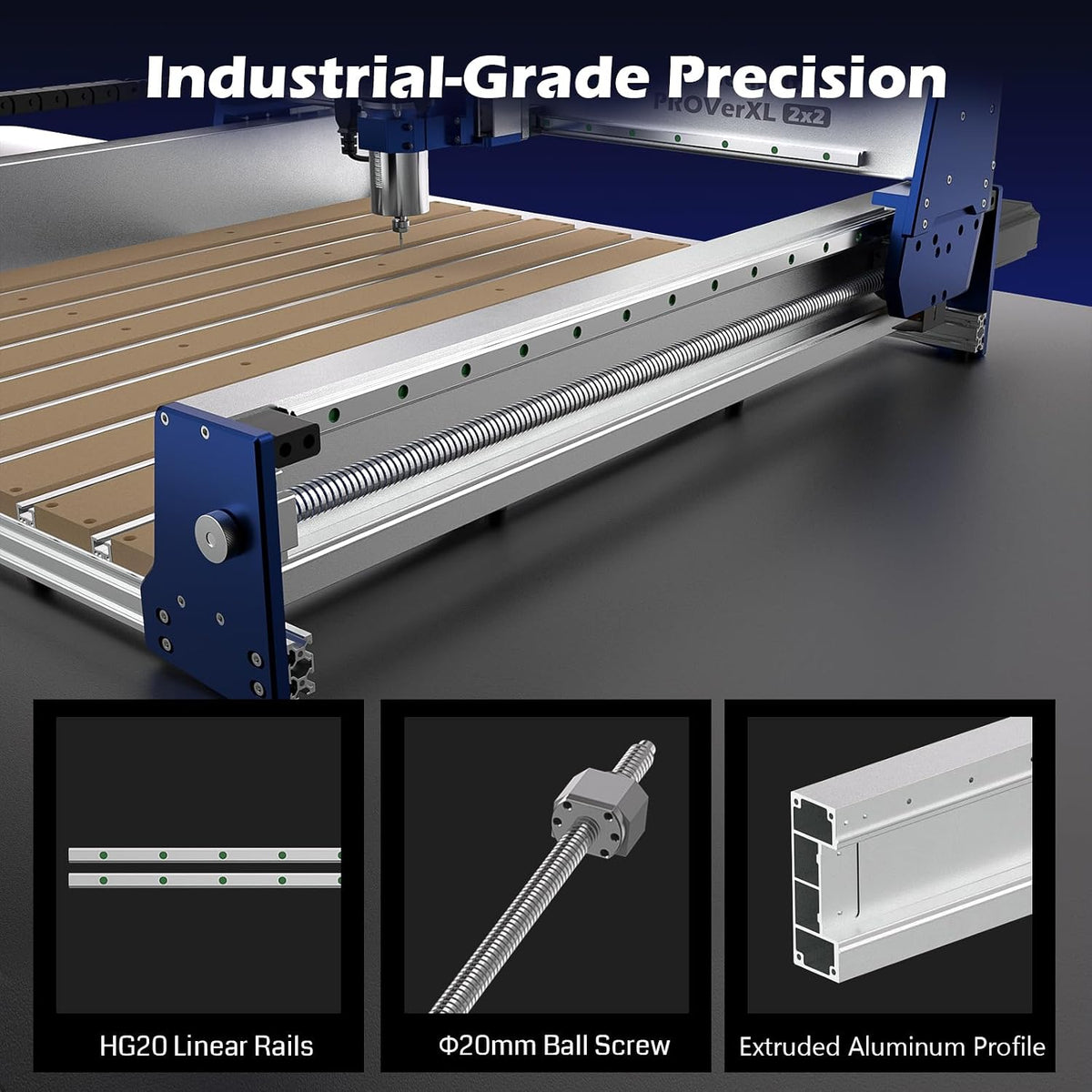

• Motion System: XYZ Axis with Ball Screws & Linear Guide

• Ball Screws: 20mm & 1204 ball screws

• Body Material: Metal Frame & Hybrid Spoilboard

• Material: Aluminum

• Spindle Motor: 710W AC Spindle

• Collets: 1/4" and 1/8" ER11 collets

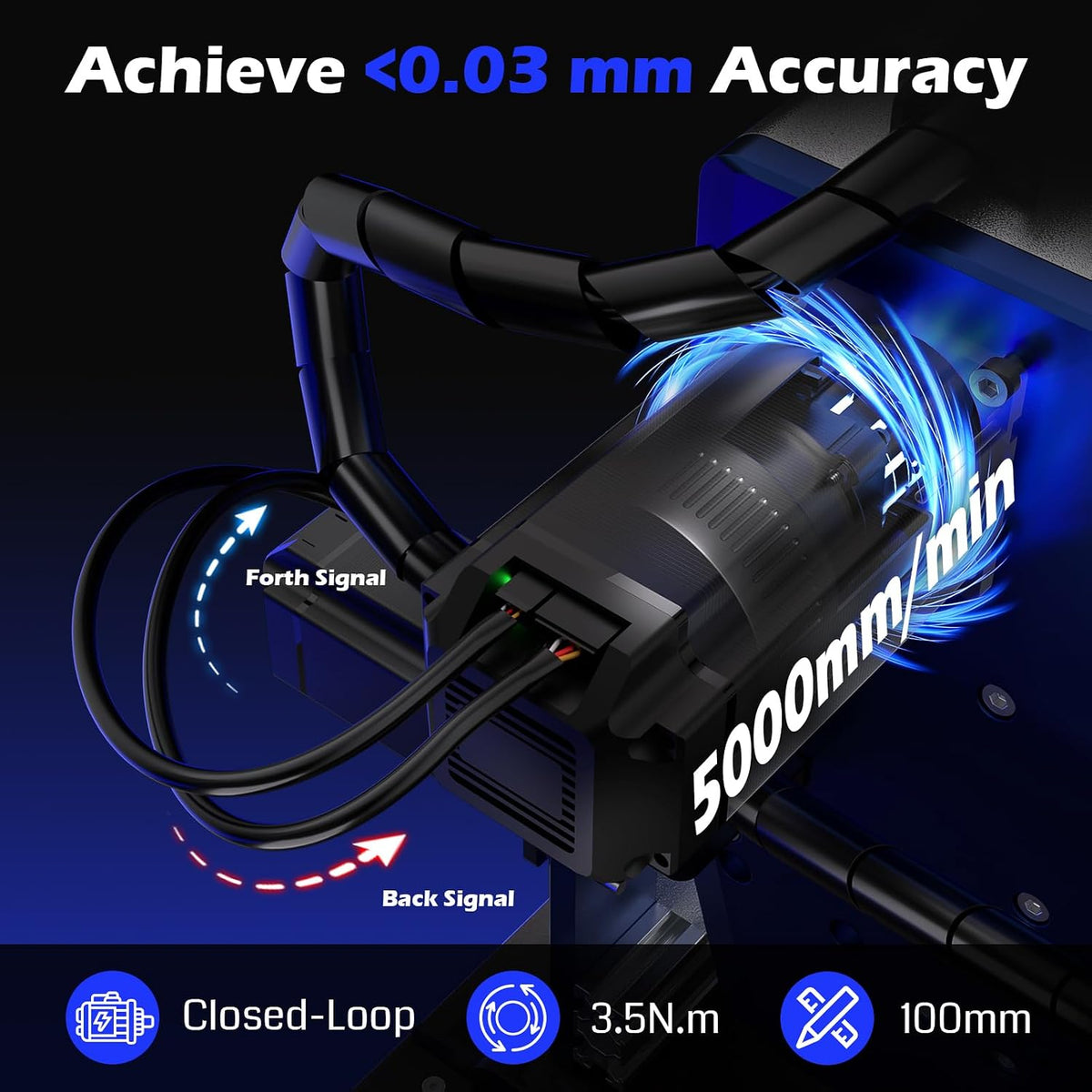

• Stepper Motor: NEMA 23, Closed-Loop Stepper Motor

• Accuracy: <±0.03 mm

• Repeatability: ±0.01 mm

• Safety: XYZ Limit Switch & Emergency Stop Switch

• Power Supply: AC110/230V (Switch Power)

• Power Source: AC/DC

• Battery Description: Corded electric

• Base Type: Fixed

• Net Weight: 198.4 lb (90kg)

• Item Dimensions W x H: 26.73"W x 4.44"H

• Product Dimensions: 26.73"W x 4.44"H

• Number of Items: 1

• Number of Packs: 1

Features

• Modular Design: Pre-assembled major components and a modular construction are designed to save more than 30 minutes of assembly time and simplify initial setup.

• Large 2×2 Work Area: The 679 × 679 × 113 mm (26.76" × 26.76" × 4.44") work envelope accommodates furniture pieces, signage, woodworking projects, and other larger builds.

• Closed-Loop Motion System: Uses ball screws, linear guide rails, and closed-loop stepper motors on all axes with <±0.03 mm accuracy and ±0.01 mm repeatability.

• Oversized Material Support: The open-front and open-back layout with extended side clearance supports clamping, indexing, and carving larger materials without requiring pre-cutting.

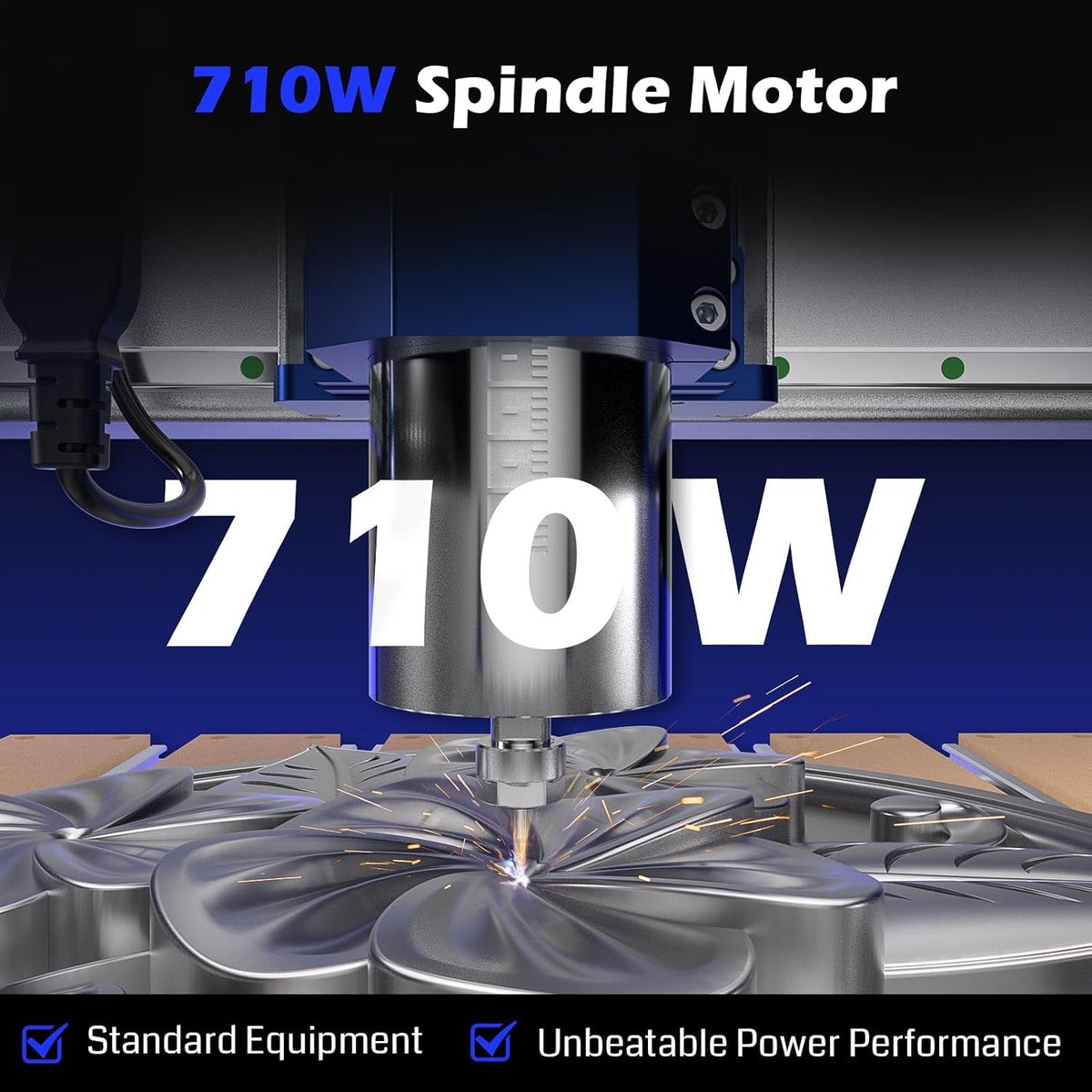

• 710W High-Speed Spindle: The 710W spindle operates at up to 30,000 RPM and includes 1/4" and 1/8" ER11 collets for working with wood, plastics, acrylic, and soft metals.

• Wi-Fi Control: Built-in Wi-Fi connectivity supports one-click batch production and remote operation through the compatible app.

• Expandable Accessory Support: Compatible with rotary axes, 5W/10W engraving modules, dust shoe, water-cooled spindle motors, offline control, dust baffles, and other plug-and-play accessories.

• Versatile Applications: Designed for woodworkers, metalworkers, small businesses, gift shops, cabinetry workflows, sign-making, detailed 3D carving, and metal engraving.

Included Components

• Main Component: Main body
